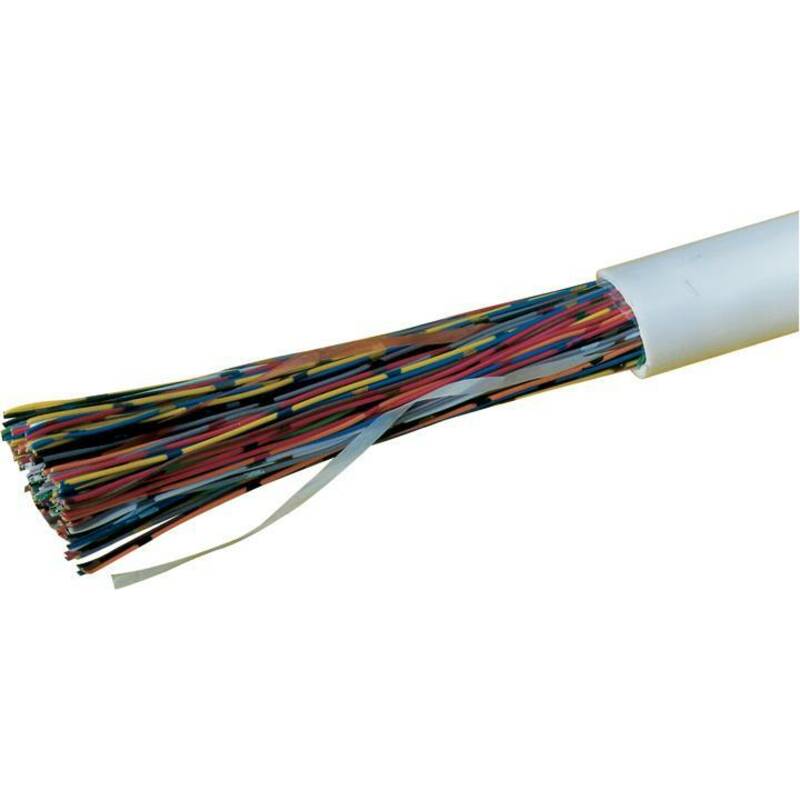

Excel CW1308 6 Pair Telephone Cable LSF - 200m Reel - White

Part Code: TC006P2W-LSF

Excel multipair internal telephone cables are manufactured in accordance with BT type CW1308. These cores are twisted into pairs and the required number are sheathed together to form the cable. These cores are twisted into pairs and the required number are sheathed together to form the cable. For 32 pair and above cables, groups of pairs, are bundled together for ease of identification.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Choice of reel sizes
  • Choice of colours
  • LSF outer sheath
  • 0.5mm conductor size
  • 25 Year system warranty
Category Voice
Overall screening None
Conductor screening None
Outer sheath colour White
Reaction-to-fire class according to en 13501-6 Eca
Core identification Colour + rings
Pair grouping identification Bundles and layers
Protective sheath No
Armouring no
Outer sheath material PVC
Diameter of conductor 0.5 mm
Halogen free (acc. en 60754-1/2) no
Flame retardant In accordance with EN 60332-1-2
Low smoke (acc. bs en 61034-2) yes
Outer diameter approx. 5.7 mm
Conductor category Class 1 = solid
Total number of cores 12
Stranding element Pairs
Core insulation PVC

Key Features

  • Category: Voice
  • Overall screening: None
  • Conductor screening: None
  • Outer sheath colour: White
  • Reaction-to-fire class according to en 13501-6: Eca
  • Core identification: Colour + rings
