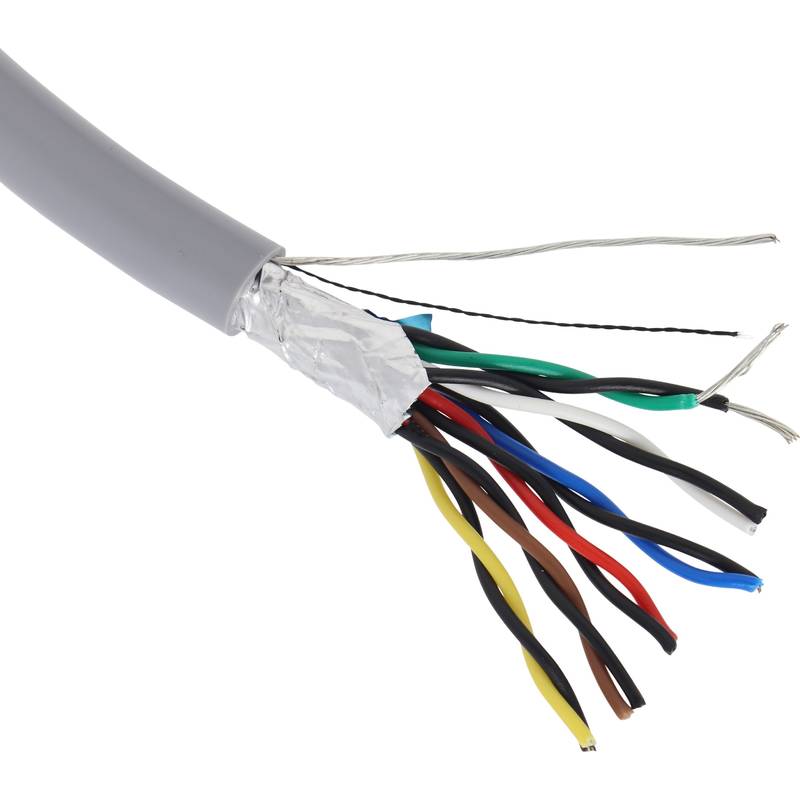

Excel Grey 6 Pair Cable - 500 Metre Reel

Part Code: 2406POFV

Excel multipair 7/0.2 screened cables are manufactured with stranded tinned copper conductors and have an overall screen, complete with a stranded drain wire. These multipair cables are suitable for a number of applications, including security, telemetry, POS and telecommunications.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Suitable for RS232 applications
  • Available in 100m/500m reels
  • LSF outer sheath
  • 25 Year system warranty
  • Euroclass Eca
Category Multipair
Overall screening Foil
Outer sheath colour Grey
Reaction-to-fire class according to en 13501-6 Eca
Awg-size 24
Specification core insulation FR-PVC
Core identification Colour
Outer sheath material PVC
Diameter of conductor 0.2 mm
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Outer diameter approx. 7.34 mm
Operating temperature range -20...80 °C
Conductor category Class 2 = stranded
Total number of cores 12
Stranding element Pairs
Core insulation FR-PVC
Conductor surface Tinned

Key Features

  • Category: Multipair
  • Overall screening: Foil
  • Outer sheath colour: Grey
  • Reaction-to-fire class according to en 13501-6: Eca
  • Awg-size: 24
  • Specification core insulation: FR-PVC
